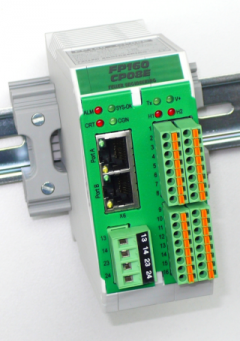

Module Controller for Temperature and Process FP160
- Slave
Categories: その他のデバイス
Generation: III
Product features:
- 2- or 3-point controller for 8 or 16 zones
- 8 or 16 inputs, thermocouple or Pt100/2-wire
- 4 or 8 inputs, Pt100/4-wire
- 8, 16 or 32 outputs for heating, cooling or alarm functions
- Short circuit resistant outputs for Solid State Relays
- Modules to snap on a mounting rail
- Connection to master control systems via interface RS485
- Serial interface and power supply via mounting rail adapter
- Optional Ethernet-interface for ProfiNet or Sercos III
- PID temperature control for heating/cooling
- Selftuning available
- Supervision-LEDs
- Separated alarms
Link to manufacturer
